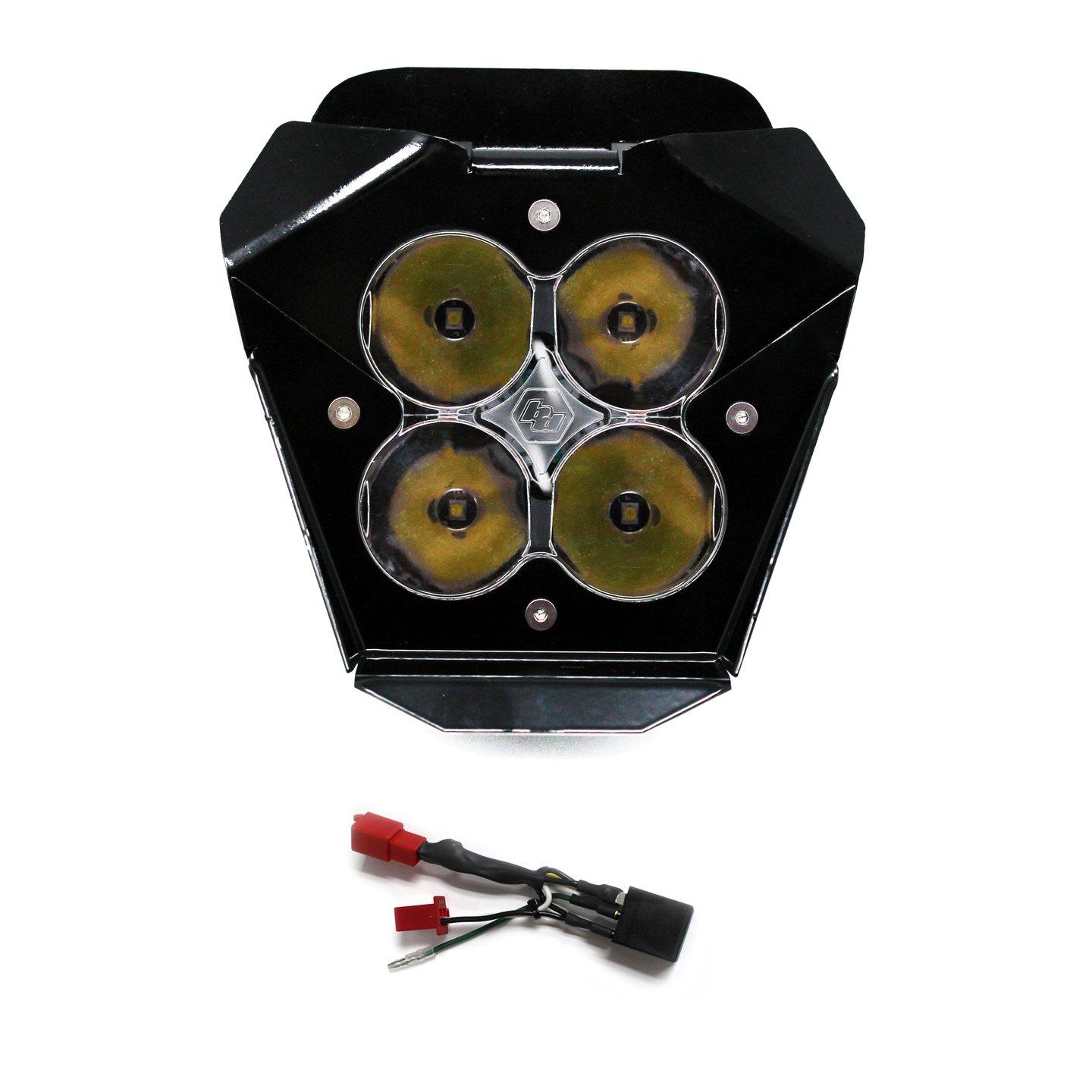

XL80 LED Headlight KTM 690 2019-Present Kit Baja Designs

Manufacturer: Baja Designs

SKU: 677072-FGXX

Manufacturer part number: 677072

Be the first to review this product

$474.95

Qty:

+ -

Vehicle Fitments

Make	Model	Submdel	From	To
KTM	690 Enduro R		2019	2019
KTM	690 SMC-R		2019	2019

Overview
Specifications
Reviews
Contact Us

Specifically designed for those riders who are looking for more than just your average headlight. The XL80, LED K 690 (19-On) kit is in a league of its own, producing 9500 lumens and 80 watts giving you the perfect mix of power and performance, and offers a 20 percent dimming feature.

The XL80, LED K 690 (19-On) kit Kit has been meticulously designed by our engineers to give our riders an extremely light weight (2.45 lbs) race light, while presenting a unique style and appearance that you will only find from Baja Designs. The XL80, LED K 690 (19-On) kit Kit is plug and play making for an easy install.

An industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.
Baja Designs Features:

Satisfactions Guarantee - 30 Day Money Back Guarantee
Limited Lifetime Warranty - Complete Purchase Protection
uService - Replaceable Lenses And Optics
ClearView - All The Light, Right Where You Need It.
MoistureBlock - Waterproof, Rain Proof, Submersible
CopperDrive - Only LED Driven At 100 percent
5000K Daylight - Less Driver Fatigue, Natural Color Specifications:
Lumens: 9,500 Utilizing 4 Cree LEDs
Wattage/Amps: 80W / 5.79A
Dimensions: 4.43 inch x 3.65 inch x 4.43 inch
Weight: 2.45 lbs
LED Life Expectancy: 49,930 Hours
Front Lens: Hardcoated Polycarbonate
Housing: Hard Anodized and Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware and Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft and Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)

Includes:
XL80, LED K 690 (19-On) kit
12-9016 K Hi-Low Relay Harness
Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (44 Degree) and spot (6 Degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Products specifications

Country of Origin	USA
Sold As	Each
UPC	810031740024
Availability	Available
Universal	No
Bezel Material	Billet Machined Aluminum
Bracket Material	Stainless Steel
Brackets Included	Yes
Housing Type	Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
IK10 Compliant	IK10 Compliant (Mechanical Impact Testing)
Lens Material	Hard Coated Polycarbonate
Life Span Expectancy	49,930 Hours
Waterproof Rating	IP69K (Waterproof up to 9ft Pressure Washable)
Series	XL Series
Finish	Powdercoat
Color	Black
Bar Type	Single Straight
Proposition 65 Warnings	CALIFORNIA WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov
