Tundra LED Switches Source LT For 12-17 Tundra With 36 Inch Battery Cables sPods

Vehicle Fitments

Make	Model	Submdel	From	To
Toyota	Tundra		2012	2013
Toyota	Tundra	Limited	2012	2017
Toyota	Tundra	Platinum	2013	2017
Toyota	Tundra	1794 Edition	2014	2017
Toyota	Tundra	SR	2014	2017
Toyota	Tundra	SR5	2014	2017
Toyota	Tundra	TRD Pro	2015	2017

Overview
Specifications
Contact Us

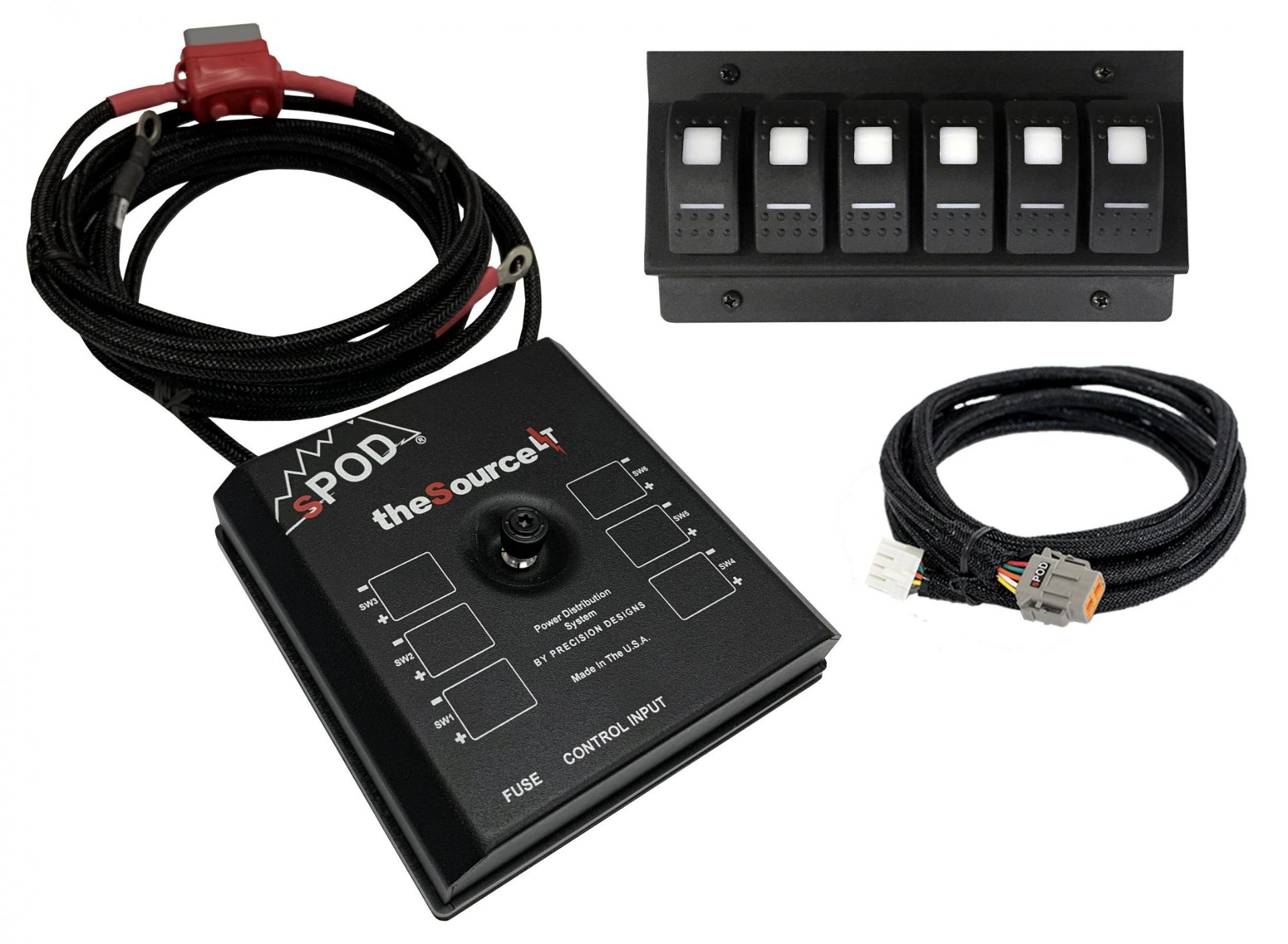

SourceLT w/ Red LED Switch Panel for 2012-2017 Toyota Tundra. Switch panel is installed in place of the sunglass compartment. The SourceLT will save hours of wiring and installation time! It is a small, solid-state 6-circuit control system that provides a clean (one cable into the cab!) and safe way to power and control 12VDC accessories.

Due to the small footprint of the SourceLT, the placement options are endless! No cutting, fishing wires into the cab or tapping into the vehicle's electrical system. It's the perfect over-all solution for all your aftermarket electrical accessories with options unmatched by anyone.
Features:

SourceLT w/ Red LED Switch Panel for 2012-2017 Toyota Tundra
6 circuits rated at 30 amps at 12.5 VDC per circuit
12-position terminal block (easily attach accessories)
Controller cable (10 foot) for simple plug-n-play connectivity to the switch controller
Integrated low voltage cutoff (LVCO) battery protection w/ optional override
Self-healing fault protection circuits (from 1.5 to 30amps)
Current-sensing MOSFETs controlled by a microprocessor (no fuses and no relays)
50amp auto-resetting circuit breaker
Nylon braided 36 inch battery cables are hi-strand crosslinked copper wire with a silicone jacket
Operates on 12VDC
Built-in Bluetooth capabilities for remote control
Protection against: overheating, over-current, shorts, reverse polarity and field collapse
On-demand wireless software updates/upgrades

Hardware:

Powder coated steel base w/ built in hardware
Silicone gasket for weatherproofing
Simple thumb screw fastening aluminum lid with convenient silkscreened outlines for placement of supplied legends
Universal and vehicle specific mounting options
Robust insulated base and cover

Features Available Through sPOD Mobile App (free):

Each switch can be programmed for:
Dimming
Strobe
Flash
Momentary
Switch Linking
On-Road and Off-Road mode of operation

Switch Panel:

Switch panel with six dual lit LED switches (installed and pre-wired)
All wires are wrapped in high-temp abrasion resistant nylon braided sleeving.
Comes with a 10 foot control cable
Aluminum panels are formed, welded and powder coated
Carling Technologies Contura switches (certified to IP66/68 - marine/harsh environment)
Controlled lower pilot light (push button)
Custom laser-etched rockers are available (sold separately)
Auto safe system shutdown when panel is unplugged

Bluetooth Requirements:

Access to iTunes or Google Play Store to download the sPOD app
Bluetooth 4.0 compatible
Compatible with Android devices running 8.0 Oreo (API 26) or later
Compatible with iOS 11 or newer, iPhone 7s or newer, iPad 2 or newer, iPad mini
Must have existing sPOD system

Products specifications

Country of Origin	USA
Sold As	Each
UPC	00816482020319
Availability	Available
Universal	No
Switch Color	Amber
