TJ Swicth Panel 8 Circuit Source SE W/Touchscreen 97-06 Wrangler TJ sPOD

Manufacturer: sPOD

SKU: 8-700-TS-TJ-GNJV

Manufacturer part number: 8-700-TS-TJ

Be the first to review this product

$750.00

Qty:

+ -

Vehicle Fitments

Make	Model	Submdel	From	To
Jeep	Wrangler	Sahara	1997	2004
Jeep	Wrangler	SE	1997	2006
Jeep	Wrangler	Sport	1997	2006
Jeep	Wrangler	X	2002	2006
Jeep	Wrangler	Rubicon	2003	2006
Jeep	Wrangler	Unlimited	2004	2006
Jeep	Wrangler	Unlimited Rubicon	2005	2006
Jeep	Wrangler	65th Anniversary Edition	2006	2006

Overview
Specifications
Reviews
Contact Us

TJ Swicth Panel 8 Circuit Source SE W/Touchscreen 97-06 Wrangler TJ. sPOD systems utilizes automotive grade approved high-power, high-temp, ultra-reliable components with a maximum 100 amp capacity! The sPOD SourceSE is a Solid-State fully programmable digital CAN-Bus controlled system utilizing state-of-the-art technologies. OEM vehicle specific simple installation hardware, engineered and 100% manufactured in the United States since 2006.
The industry leader in power and control solutions.
sPOD systems utilizes automotive grade approved high-power, high-temp, ultra-reliable components with a maximum 100 amp capacity! The sPOD SourceSE is a Solid-State fully programmable digital CAN-Bus controlled system utilizing state-of-the-art technologies. OEM vehicle specific simple installation hardware, engineered and 100 percent manufactured in the United States since 2006.

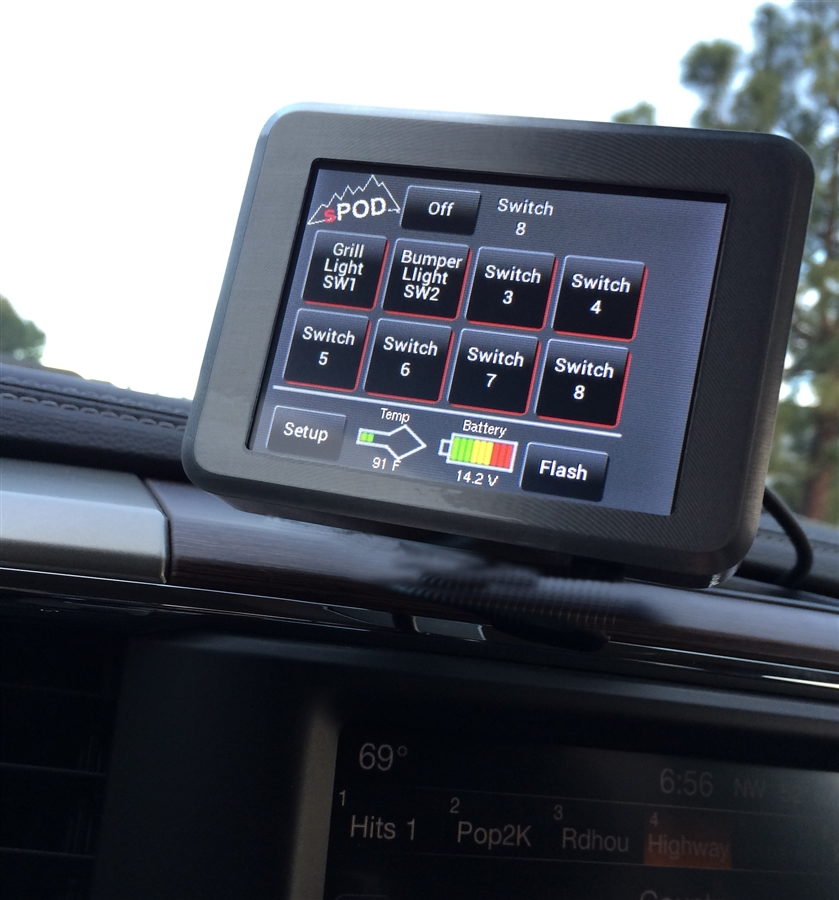

The touchscreen controller is small but packs a BIG punch! (3-3/4w X 2-7/8h X 5/8 thk) The control module is a 3.5-inch LED backlit TFT LCD screen with a resolution of 320 x 240, 16.7m colors and a viewing angle of 180 degrees housed in a billet aluminum case with a 1 RAM mount installed on back panel. The connection between the SourceSE and the touchscreen uses a standard Ethernet cable 10 feet long.
Note: If you have a 4 cylinder motor, please email us and let us know!
Benifits:

Reduced installation time and labor allowing for mounting and connection of eight switches at one time versus individually.
Reduced wire harness complexity, using one harness to our controller to accommodate up to 32 circuits.
Reduced harness size offers an overall reduction in weight, improving operational efficiency of the equipment.
Increase in switch lifecycle over traditional electromechanical switches.

Each switch is programmable for:

Dimming
Strobe
Flash
Momentary
Switch Linking
On Road and Off Road mode of operation

Touchscreen Control Module Features:

Voltage feedback (vehicles battery/alternator voltage)
SourceSE board temperature feedback (shown on screen)
Customization: legends (3 lines of text)
Automatic backlighting off after 30 minutes of being inactivity
Automatic power off after 6 hours of being inactive or engine not running (Deep sleep mode)
One touch off function
One second hold on off button shuts all circuits down
Automatic system shut down when touchscreen is unplugged
Backlight dimming
Multiple Source select (One touchscreen can control up to 32 circuits)

Options / parts required:
RAM-201U Double Socket Arm for 1 inch RAM Ball (Must have this in order to mount touchscreen)
RAM-238U Base with 1 inch RAM Ball (For fixed surface mounting and interconnect between double socket arm)
8-700-PSA A-Pillar Mount with 1 inch rubber coated Ram Ball. (For fixed surface mounting and interconnect between double socket arm)
RAM-224-1U Suction Cup Base with 1 inch RAM Ball (For fixed surface mounting and interconnect between double socket arm)
8-700-BT Add-on Bluetooth module to enable the system to be controlled by an iPhone, iPad or iPad Mini (Optional)
Note: Please indicate if you are running LUX Lighting Systems LED lights. We will include a resistor that is required in order for the lights to function properly.

Products specifications

Country of Origin	US
Sold As	Kit
UPC	816482020692
Availability	Available
Hardware Included	Yes
Universal	No
Battery Cable Length	36 Inch
Built In Blue Tooth	No
Capacity	100 AMP
Circuit Breaker Included	50 AMP
Includes Switches	Yes
Legends Included	No
Mfg Label	Switch Panel
Number of Switches	8
Single Circuit Capacity	30 AMP
Switch Color	Black, Red, Green
Switch Illumination	LCD
Wiring Included	Yes
Material	Billet Aluminum
Color	Black
Finish	Powdercoat
