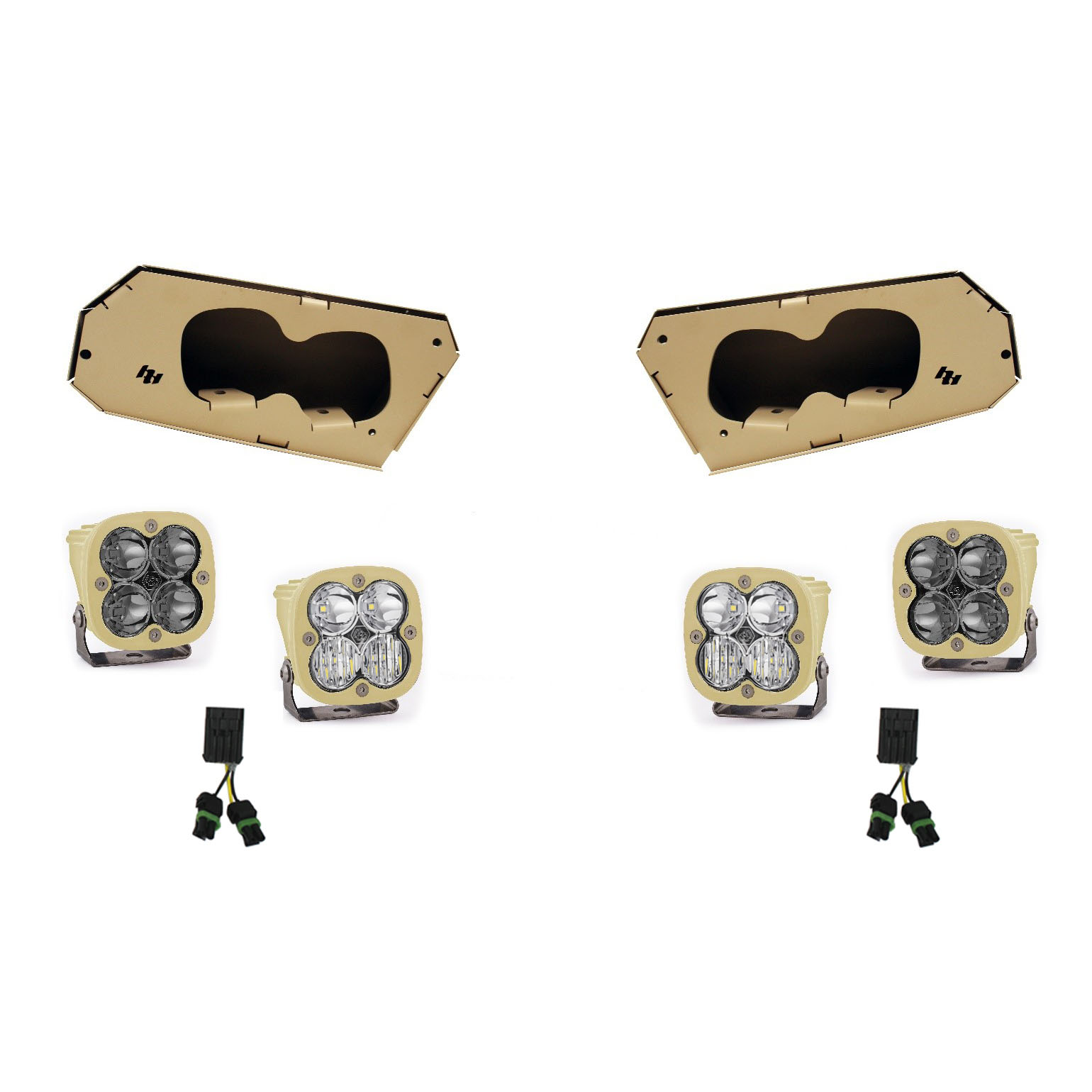

Polaris Dagor Headlight Kit Baja Designs

Manufacturer: Baja Designs

SKU: 447026-FGXX

Manufacturer part number: 447026

Be the first to review this product

$1,574.95

Qty:

+ -

Overview
Specifications
Reviews
Contact Us

Our Polaris Dagor Headlight Kit is powder coated to match and face the elements just as the Dagor would. We've had our BD engineers put in the hours doing severe testing on both the mounts, and lights to ensure that you've always got I.R. light when you need.

Go secretly into the night and see without being seen with our Squadron Pro IR LED Lights and plug directly into the factory harness retaining the factory Hi/Low function. This kit covers all the bases, making for easy assembly, cleaning, and servicing.

Squadron 940nm Specifications:

Baja Designs Features:

Satisfactions Guarantee - 30 Day Money Back Guarantee
Limited Lifetime Warranty - Complete Purchase Protection
uService - Replaceable Lenses And Optics
ClearView - All The Light, Right Where You Need It.
MoistureBlock - Waterproof, Rain Proof, Submersible
CopperDrive - Only LED Driven At 100 percent

Specifications (Per Light):

LED: 4 Osram 940nm LEDs
mW: 3960mW
mW/sr: 1700mW/sr
Weight: 12 ounces
Wattage/Amps/Volts: 11W, .80A at 13.80Vdc, .40A at 27.6Vdc
Dimensions: 3.07 inch x 2.76 inch x 3.07 inch
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
Bezel: Billet Machined Aluminum
Hardware and Bracket Material: Stainless Steel
Built-In Overvoltage Protection
Exceeds MIL-STD810G (Mil-Spec Testing)
IP69K (Waterproof up to 9ft and Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)

Squadron Pro Specifications:

Baja Designs Features:

Satisfactions Guarantee - 30 Day Money Back Guarantee
Limited Lifetime Warranty - Complete Purchase Protection
uService - Replaceable Lenses And Optics
ClearView - All The Light, Right Where You Need It.
MoistureBlock - Waterproof, Rain Proof, Submersible
CopperDrive- Only LED Driven At 100 percent
5000K Daylight - Less Driver Fatigue, Natural Color

Specifications:

Lumens: 4,900 Utilizing 4 Cree LEDs
Wattage/Amps: 40W / 2.90A
Dimensions: 3.07 inch x 2.77 inch x 3.07 inch
Weight: 12 ounces
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Hard Anodized and Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware and Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)

Includes:

Headlight Buckets
Hi-Low Plug and Play Harness
x2 Squadron Pro
x2 Squadron 940nm

Products specifications

Country of Origin	USA
Sold As	Kit
UPC	810031742783
Availability	Available
Universal	No
Bezel Material	Billet Machined Aluminum
Bracket Material	Stainless Steel
Brackets Included	Yes
Housing Type	Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
IK10 Compliant	IK10 Compliant (Mechanical Impact Testing)
Lens Material	Hard Coated Polycarbonate
Life Span Expectancy	49,930 Hours
Waterproof Rating	IP69K (Waterproof up to 9ft Pressure Washable)
Series	Squadron Series
Material	Aircraft Grade Aluminum
Finish	Hard Anodized
Proposition 65 Warnings	CALIFORNIA WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov
