Jeep JL/JT Rubicon Steel Bumper LED Light Kit XL Pro Baja Designs

Vehicle Fitments
MakeModelSubmdelFromTo
JeepWranglerRubicon20182021
JeepWranglerUnlimited Rubicon20182021
JeepGladiatorRubicon20202021

This lighting and wiring setup has been tested on the Jeep JL / JT with the Rubicon Steel bumper to take the guess work out of installation! With a 4,900 lumen count and power draw of 40 watts, the XL Pro is the only single housing LED auxiliary light on the market that has the distance of an 8 HID with the smooth spread of an LED.

The XL Pro LED light utilizes our trademarked High Speed Spot reflectors providing for a longer beam pattern, and offers a 20 percent dimming feature. Perfect for enthusiasts that need a vast amount of light and are looking for something other than a light bar.

An industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.
Baja Designs Features:

  • Satisfactions Guarantee 30 Day Money Back Guarantee
  • Limited Lifetime Warranty Complete Purchase Protection
  • uService Replaceable Lenses And Optics
  • ClearView All The Light, Right Where You Need It.
  • MoistureBlock Waterproof, Rain Proof, Submersible
  • CopperDrive Only LED Driven At 100 percent
  • 5000K Daylight Less Driver Fatigue, Natural Color

Specifications:

  • Lumens: 4,900 Utilizing 4 Cree XP-L LEDs
  • Wattage/Amps: 40W / 2.90A
  • Dimensions: 4.43 x 3.65 x 4.43 inch
  • Weight: 2.45 lbs
  • LED Life Expectancy: 49,930 Hours
  • Front Lens: Hardcoated Polycarbonate
  • Housing: Hard Anodized and Powder Coated Cast Aluminum
  • Bezel: Billet Machined Aluminum
  • Hardware and Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof up to 9ft and Pressure Washable)
  • IK10 Compliant (Mechanical Impact Testing)

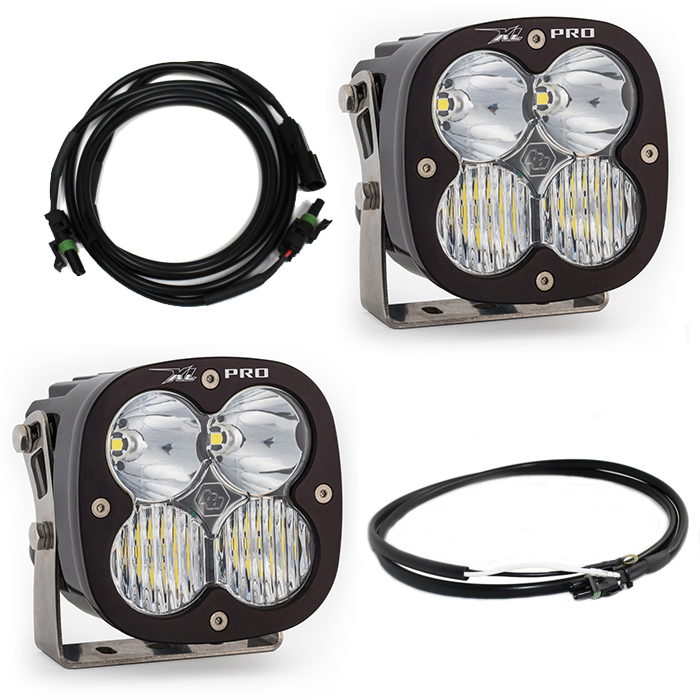

Includes:

  • XL Pro LED Light
  • Mounting Bracket
  • Upfitter Harness
  • Splitter Harness
  • Zip Ties

Application:

  • Jeep JL Rubicon W/ Steel Bumper
  • Jeep JT Rubicon W/ Steel Bumper

Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (44 Degree) and spot (6 Degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Products specifications
Country of OriginUSA
Sold AsKit
UPC810031742486
AvailabilityAvailable
UniversalNo
Brackets IncludedYes
IK10 CompliantIK10 Compliant (Mechanical Impact Testing)
Life Span Expectancy49,930 Hours
Waterproof RatingIP69K (Waterproof up to 9ft Pressure Washable)
SeriesJeep OE
Proposition 65 Warnings

CALIFORNIA WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov

*
*
*
Picture of Jeep JL/JT Rubicon Steel Bumper LED Light Kit XL Pro w/Upfitter Baja Designs
Jeep JL/JT Rubicon Steel Bumper LED Light Kit XL Pro w/Upfitter Baja Designs
SKU: 447668UP-FGXX
Manufacturer part number: 447668UP
Picture of Jeep JL/JT Rubicon Steel Bumper LED Light Kit XL Pro Baja Designs
Jeep JL/JT Rubicon Steel Bumper LED Light Kit XL Pro Baja Designs
SKU: 447668-FGXX
Manufacturer part number: 447668
Products specifications
Country of OriginUSA
Sold AsKit
UPC810031742486
AvailabilityAvailable
UniversalNo
Brackets IncludedYes
IK10 CompliantIK10 Compliant (Mechanical Impact Testing)
Life Span Expectancy49,930 Hours
Waterproof RatingIP69K (Waterproof up to 9ft Pressure Washable)
SeriesJeep OE
Proposition 65 Warnings

CALIFORNIA WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov
