Jeep JL/JT Rubicon Steel Bumper LED Light Kit XL 80 Baja Designs

Vehicle Fitments
MakeModelSubmdelFromTo
JeepWranglerRubicon20182021
JeepWranglerUnlimited Rubicon20182021
JeepGladiatorRubicon20202021

This lighting and wiring setup has been tested on the Jeep JL / JT with the Rubicon Steel bumper to take the guess work out of installation! Choose to take your off-road lighting to the next level with BDs 9,500 lumen XL80.

Similar to BDs XL Pro model, the XL80 offers a 20 percent dimming feature, a powder coated housing and an anodized bezel. However, this is where the similarities end. The XL80 features a very powerful LED for greater visibility and increased brightness.

As always, Baja Designs offers a 30 Day Satisfaction Guarantee, and Limited Lifetime Warranty.
Baja Designs Features:

  • Satisfactions Guarantee 30 Day Money Back Guarantee
  • Limited Lifetime Warranty Complete Purchase Protection
  • uService Replaceable Lenses And Optics
  • ClearView All The Light, Right Where You Need It.
  • MoistureBlock Waterproof, Rain Proof, Submersible
  • CopperDrive Only LED Driven At 100 percent
  • 5000K Daylight Less Driver Fatigue, Natural Color

Specifications (Per Light):

  • Lumens: 9,500 Utilizing 4 Cree LEDs
  • Wattage/Amps: 80W / 5.50A
  • Dimensions: 4.43 x 3.65 x 4.43 inch
  • Weight: 2.45 lbs
  • LED Life Expectancy: 49,930 Hours
  • Front Lens: Hardcoated Polycarbonate
  • Housing: Hard Anodized and Powder Coated Cast Aluminum
  • Bezel: Billet Machined Aluminum
  • Hardware and Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof up to 9ft and Pressure Washable)
  • IK10 Compliant (Mechanical Impact Testing)

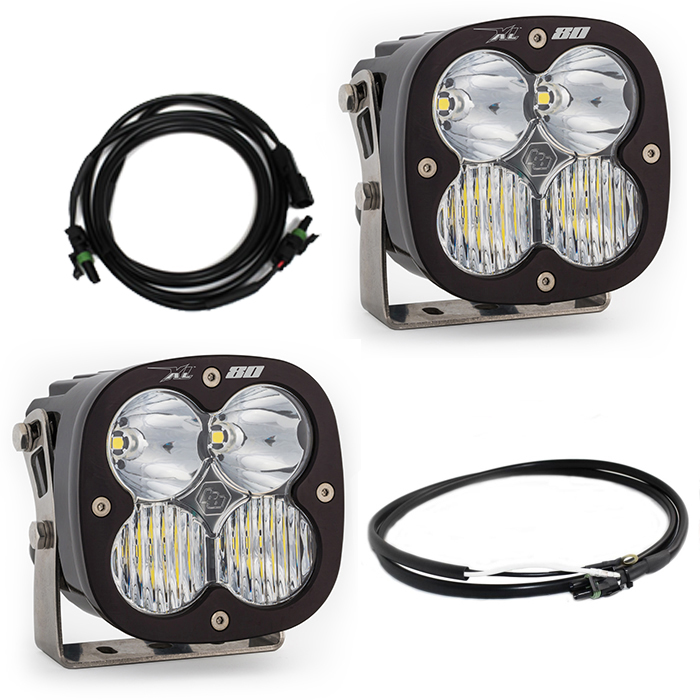

Includes:

  • 2x XL80 LED Light
  • Mounting Bracket
  • Upfitter Harness
  • Splitter Harness
  • Zip Ties

Application:

  • Jeep JL Rubicon W/ Steel Bumper
  • Jeep JT Rubicon W/ Steel Bumper

Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (44 degree) and spot (6 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Products specifications
Country of OriginUSA
Sold AsKit
UPC810031742516
AvailabilityAvailable
UniversalNo
Brackets IncludedYes
IK10 CompliantIK10 Compliant (Mechanical Impact Testing)
Life Span Expectancy49,930 Hours
Waterproof RatingIP69K (Waterproof up to 9ft Pressure Washable)
SeriesJeep OE
Proposition 65 Warnings

CALIFORNIA WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov

*
*
*
Picture of Jeep JL/JT Rubicon Steel Bumper LED Light Kit XL 80 w/Upfitter Baja Designs
Jeep JL/JT Rubicon Steel Bumper LED Light Kit XL 80 w/Upfitter Baja Designs
SKU: 447669UP-FGXX
Manufacturer part number: 447669UP
Picture of Jeep JL/JT Rubicon Steel Bumper LED Light Kit XL 80 Baja Designs
Jeep JL/JT Rubicon Steel Bumper LED Light Kit XL 80 Baja Designs
SKU: 447669-FGXX
Manufacturer part number: 447669
