Jeep JL Fog Pocket Kit 2018 Wrangler JL Baja Designs

Vehicle Fitments

Make	Model	Submdel	From	To
Jeep	Wrangler	Rubicon	2018	2018
Jeep	Wrangler	Sport	2018	2018
Jeep	Wrangler	Sport S	2018	2018
Jeep	Wrangler	Unlimited Rubicon	2018	2018
Jeep	Wrangler	Unlimited Sahara	2018	2018
Jeep	Wrangler	Unlimited Sport	2018	2018
Jeep	Wrangler	Unlimited Sport S	2018	2018

Overview
Specifications
Contact Us

Our JL Sport/Sport-S Fog Pocket replacement kit allows enthusiasts to retain factory fit and finish, while taking advantage of premium aftermarket LED output. This kit features a pair of Squadron Sports, which have a combined output of 4,520 lumens.
Installing the kit can't be any easier. Our durable brackets have been designed to retain the stock mounting points. The provided wire adapters plug and play right into the OEM connectors, allowing the user to retain use of the factory fog switch, with no need for splicing or soldering.
Note: This kit is only compatible with the plastic Sport/Sport-S bumper. Please verify you have the same bumper pictured in the secondary photos.
Baja Designs Features:

Satisfactions Guarantee 30 Day Money Back
Guarantee
Limited Lifetime Warranty Complete Purchase Protection
uService Replaceable Lenses And Optics
ClearView All The Light, Right Where You Need It.
MoistureBlock Waterproof, Rain Proof, Submersible
CopperDrive Only LED Driven At 100 percent
5000K Daylight Less Driver Fatigue, Natural Color Specifications (per light):
Lumens: 2,260 Utilizing 4 LEDs
Wattage/Amps: 20W / 1.4A
Dimensions: 3.07 inch x 2.77 inch x 3.07 inch
Weight: 12 ounces
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Hard Anodized and Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware and Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)

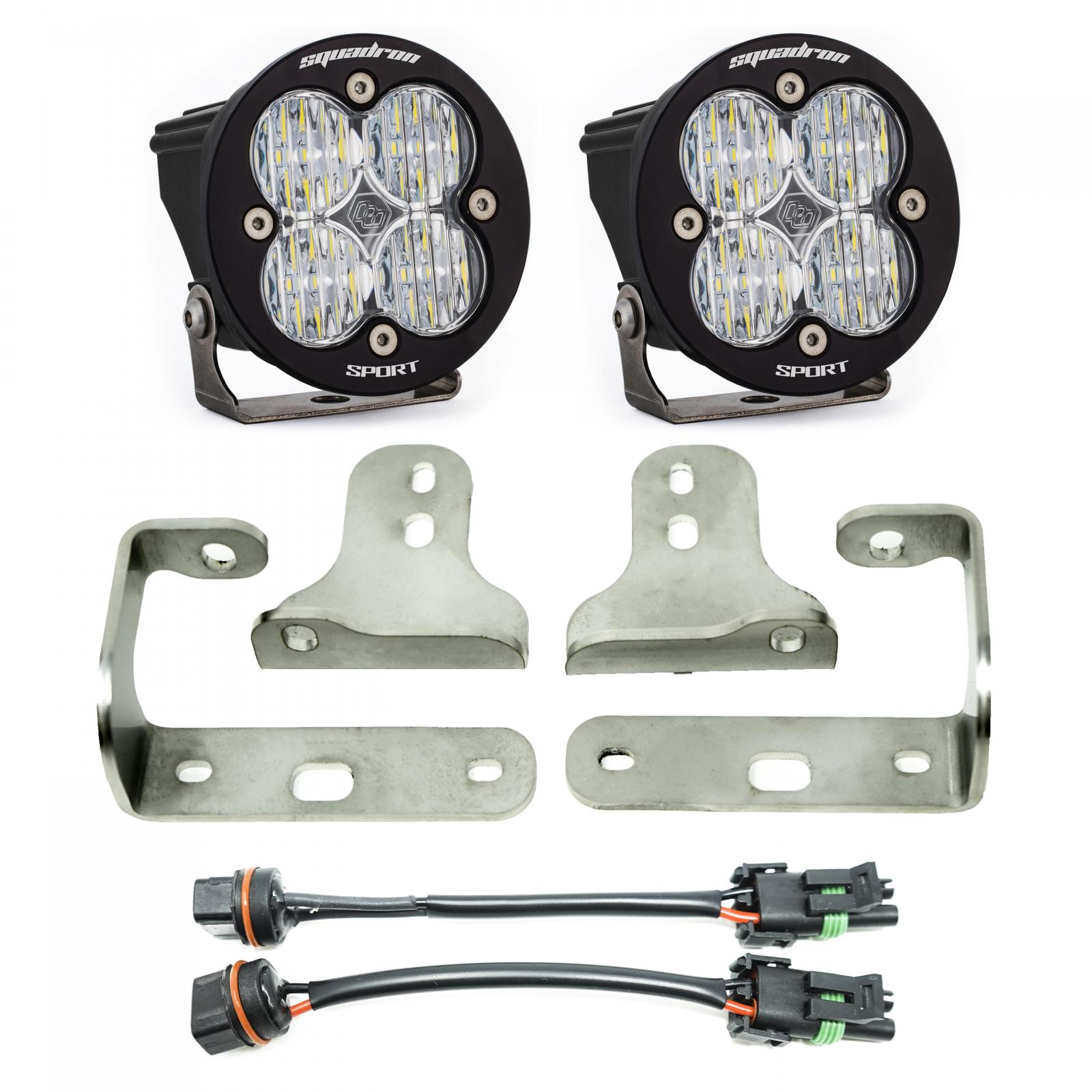

Includes:

(2) Squadron-R Sport LED Lights
(2) Sets of Jeep JL Mounting Brackets
Plug and Play wiring connectors
Hardware

Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 degree) and spot (9 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42 degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)
Spot: A longer and narrower 9 degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)
Work/Scene: Excellent work light or scene lightСњ with an extremely smooth 120 degree circle that projects about 40ft. This pattern is not suitable for driving. (Lighting Zone 7)

Products specifications

Country of Origin	USA
Sold As	Kit
UPC	819314026954
Availability	Available
Universal	Yes
Bezel Material	Billet Machined Aluminum
Bracket Material	Stainless Steel
Brackets Included	Yes
Housing Type	Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
IK10 Compliant	IK10 Compliant (Mechanical Impact Testing)
Lens Color	Clear
Lens Material	Hard Coated Polycarbonate
Life Span Expectancy	49,930 Hours
Light Pattern	Wide Cornering
Series	Squadron Sport Series
Material	Aircraft Grade Aluminum
Finish	Powdercoat
Proposition 65 Warnings	CALIFORNIA WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov
