Jeep JK XL Linkable Roof Bar Kit 07-16 Wrangler JK Baja Desgins

Manufacturer: Baja Designs

SKU: 447099-FGXX

Manufacturer part number: 447099

Be the first to review this product

$2,204.95

Qty:

+ -

Vehicle Fitments

Make	Model	Submdel	From	To
Jeep	Wrangler	Rubicon	2007	2016
Jeep	Wrangler	Sahara	2007	2016
Jeep	Wrangler	Unlimited Rubicon	2007	2016
Jeep	Wrangler	Unlimited Sahara	2007	2016
Jeep	Wrangler	Unlimited X	2007	2010
Jeep	Wrangler	X	2007	2010
Jeep	Wrangler	Sport	2010	2016
Jeep	Wrangler	Unlimited Sport	2010	2016
Jeep	Wrangler	70th Anniversary	2011	2011
Jeep	Wrangler	Unlimited 70th Anniversary	2011	2011
Jeep	Wrangler	75th Anniversary	2016	2016
Jeep	Wrangler	Sport S	2016	2016
Jeep	Wrangler	Unlimited 75th Anniversary	2016	2016
Jeep	Wrangler	Unlimited Sport S	2016	2016

Overview
Specifications
Reviews
Contact Us

Full adjustment. Total Performance. The XL Linkable was designed for the enthusiast looking to take charge with a light package that is completely customizable for their needs.

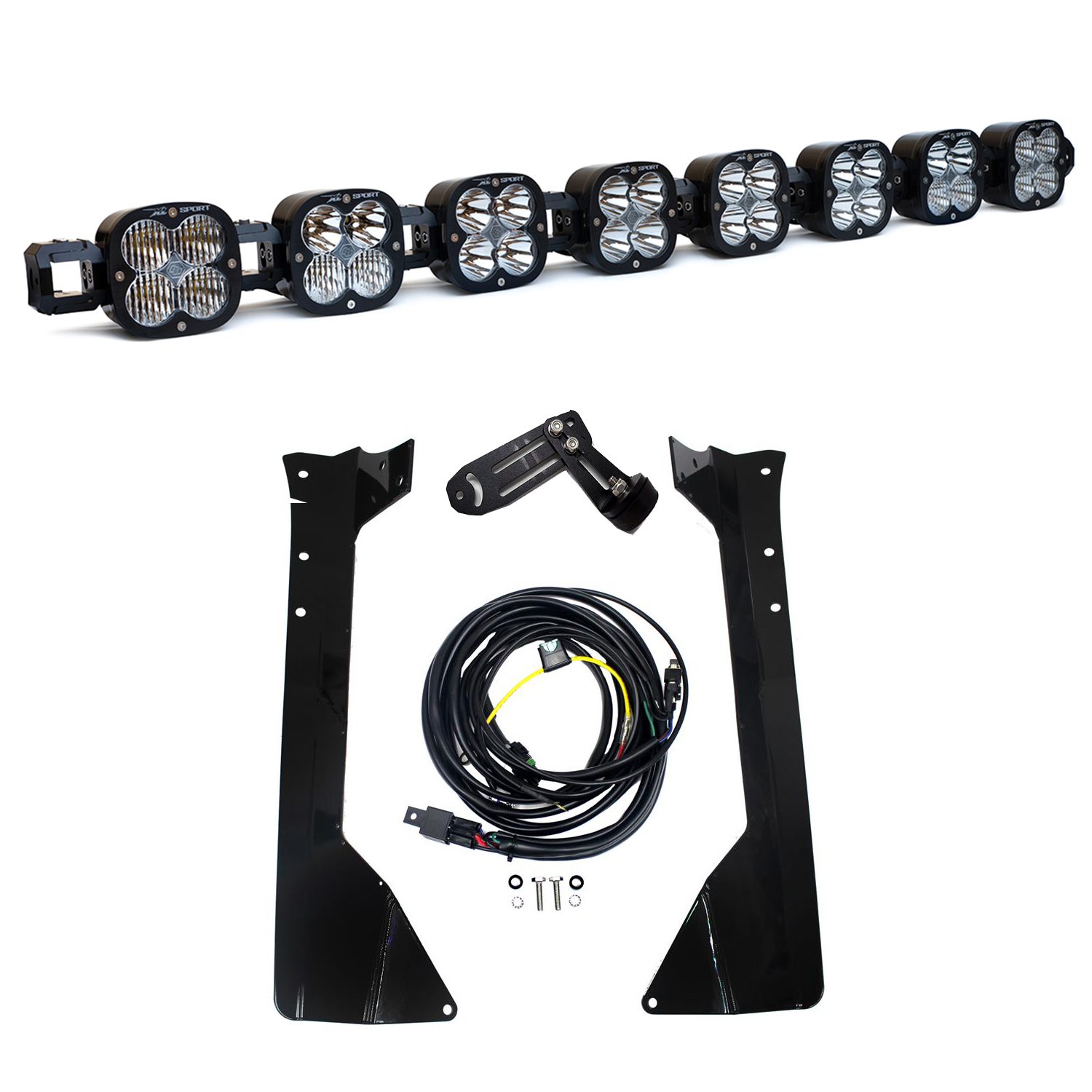

This kit includes 8 XL Sports, Links, vehicle specific mounting brackets, wiring harness and rock guards. A pre-load support bracket is included to ensure stiffness in the most extreme terrain.

This kit is a turn key system for the Jeep JK owner that is looking to take down the night, and give a standoff appearance to their vehicle!
Baja Designs Features:

Satisfactions Guarantee - 30 Day Money Back Guarantee
Limited Lifetime Warranty - Complete Purchase Protection
uService - Replaceable Lenses And Optics
ClearView - All The Light, Right Where You Need It.
MoistureBlock - Waterproof, Rain Proof, Submersible
CopperDrive - Only LED Driven At 100 percent
5000K Daylight - Less Driver Fatigue, Natural Color Specifications:
Lumens: 25,200 Utilizing 32 LEDs
Wattage/Amps: 208W / 16A
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware and Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)

Includes:

x4 XL Sport Spot LED Light
x2 XL Sport Driving/Combo LED Light
x2 XL Sport Wide Cornering LED Light
x8 XL Sport Rock Guards
Jeep JK Mounting Brackets
Pre-load Kit
Wiring Harness

Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (44 Degree) and spot (6 Degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 44 Degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)
High Speed Spot: A longer and narrower 6 Degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)

Products specifications

Country of Origin	USA
Sold As	Kit
UPC	810031741786
Availability	Available
Universal	No
Bezel Material	Billet Machined Aluminum
Bracket Material	Stainless Steel
Brackets Included	Yes
Housing Type	Powder Coated Cast Aluminum
IK10 Compliant	IK10 Compliant (Mechanical Impact Testing)
Lens Color	Clear
Lens Material	Hard Coated Polycarbonate
Life Span Expectancy	49,930 Hours
Waterproof Rating	IP69K (Waterproof up to 9ft Pressure Washable)
Series	XL Series
Finish	Powdercoat
Proposition 65 Warnings	CALIFORNIA WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov
