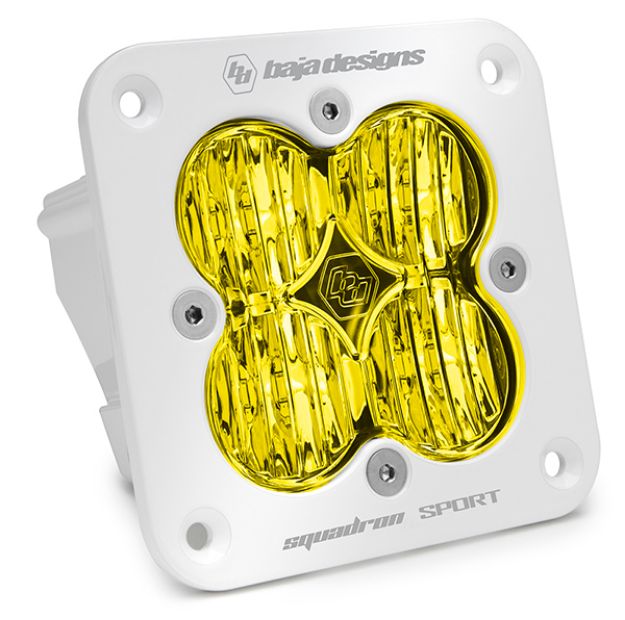

Flush Mount LED Light Pod White Squadron Sport Baja Designs

Overview
Specifications
Contact Us

Although similar in aesthetics to the Squadron Pro, the application for the Sport varies. The Squadron Sport utilizes 4 LEDs producing an impressive 3,100 lumens at 27.5 watts making it ideal for near field, side/backup and scene lighting application. An industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.

Light Pattern: Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42 degree flattened horizontal beam for the ultimate in comfort lighting.(Lighting Zones 1 and 2)

Baja Designs Features:

Satisfactions Guarantee 30 Day Money Back Guarantee
Limited Lifetime Warranty Complete Purchase Protection
uService Replaceable Lenses And Optics
ClearView All The Light, Right Where You Need It.
MoistureBlock Waterproof, Rain Proof, Submersible
CopperDrive Only LED Driven At 100 percent
5000K Daylight Less Driver Fatigue, Natural Color

Specifications:

Lumens: 3,100 Utilizing 4 LEDs
Wattage/Amps: 27.5W/2A
Dimensions: 3.50 x 2.77 x 3.5 inch
Weight: 12 ounces
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware and Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)

Includes:
Squadron Sport Flush Mount LED Light-Wide Cornering-Amber Lens and White Housing
Mounting Bracket

Products specifications

Country of Origin	USA
Sold As	Each
UPC	819314024875
Availability	Available
Universal	Yes
Bezel Material	Billet Machined Aluminum
Bracket Material	Stainless Steel
Brackets Included	Yes
Housing Type	Powder Coated Cast Aluminum
IK10 Compliant	IK10 Compliant (Mechanical Impact Testing)
Lens Color	Amber
Lens Material	Hard Coated Polycarbonate
Life Span Expectancy	49,930 Hours
Light Pattern	Wide Cornering
Mfg Label	LED Light Pods
Waterproof Rating	IP69K Waterproof
Wattage/AMP	20W / 1.4A
Youtube Video	https://youtu.be/G9rvxf9ZF8M
Series	Squadron Sport Series
Lumens	2,260
Color	White
Proposition 65 Warnings	CALIFORNIA WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov
