KTM LED Headlight Kit w/Shell XL Pro (20-On) D/C Baja Designs

Manufacturer: Baja Designs

SKU: 507199-FGXX

Manufacturer part number: 507199

Be the first to review this product

$467.95

Qty:

+ -

Overview
Specifications
Reviews
Contact Us

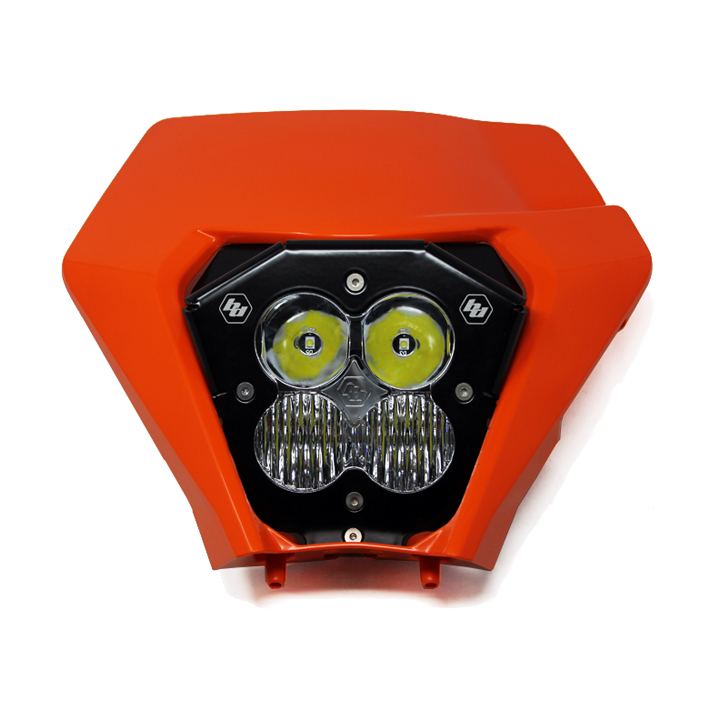

If you're looking to go night riding look no further, our Baja Designs drop-in replacement headlight kit is a major upgrade from stock and features a rugged design. This headlight kit was designed with ample adjustability and features a significant amount of vertical and horizontal spread for ultimate trail coverage. This specific model utilizes our XL Pro which produces 4600 lumens and features a 20 percent dimming feature. Installation on this kit is simple, with only a simple pin of the connectors, and comes with all necessary hardwear.

This kit comes preinstalled into a factory KTM Headlight mask (20-On). We offer this kit for the bikes that didn't come equipped with a headlight shell or for customers who don't want to disassemble their factory unit. This kit will require our [../../../../products/ktm-husqvarna-hi-low-headlight-wiring-harness-for-xl-pro-xl80-lights-ktm-husqvarna-applicable-models/]129016 harness to work with the factory Hi/Lo switch.

Satisfaction Guarantee – 30-Day Money Back Guarantee

Limited Lifetime Warranty – Complete Purchase Protection

uService – Replaceable Lenses And Optics

ClearView – All The Light, Right Where You Need It

MoistureBlock – Waterproof, Rain Proof, Submersible

CopperDrive – Only LED Driven At 100 Percent

5000K Daylight – Less Driver Fatigue, Natural Color

Warnings and Cautions:This kit will require the use of our <a href="/products/ktm-husqvarna-hi-low-headlight-wiring-harness-for-xl-pro-xl80-lights-ktm-husqvarna-applicable-models/">129016 wiring harness </a>to use the Hi/Lo feature.

Baja Designs Features:

Satisfactions Guarantee - 30 Day Money Back Guarantee
Limited Lifetime Warranty - Complete Purchase Protection
uService - Replaceable Lenses And Optics
ClearView - All The Light, Right Where You Need It.
MoistureBlock - Waterproof, Rain Proof, Submersible
CopperDrive - Only LED Driven At 100 percent

5000K Daylight - Less Driver Fatigue, Natural Color Specifications:

Lumens: 4900 Utilizing 4 Cree LEDs
Wattage/Amps: 40W / 2.9A
Dimensions: 4.43 inch x 3.65 inch x 4.43 inch
Weight: 2.45 lbs
LED Life Expectancy: 49,930 Hours
Front Lens: Hardcoated Polycarbonate
Housing: Hard Anodized and Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware and Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft and Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)

Includes:

XL Pro, LED KTM Kit With 2017-2019 Headlight Shell
AC/DC Power convertor

Patterns:
High Speed Spot: A longer and narrower 6 degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)

Products specifications

Country of Origin	USA
Sold As	Kit
UPC	810031741700
Availability	Available
Universal	No
Bezel Material	Billet Machined Aluminum
Housing Type	Hard Anodized and Powder Coated Cast Aluminum
IK10 Compliant	IK10 Compliant (Mechanical Impact Testing)
Lens Color	Clear
Lens Material	Hard Coated Polycarbonate
Life Span Expectancy	49,930 Hours
Light Pattern	Driving/Combo
Waterproof Rating	IP69K (Waterproof up to 9ft Pressure Washable)
Youtube Video	https://youtu.be/nbWkPbslLHU
Series	XL Pro Series
Finish	Hard Anodized
Proposition 65 Warnings	CALIFORNIA WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov
